WL-PD450MA: 450 MHz InGaAs Low Noise Photodetector

Datasheet
Rev. 1a (01/2016)
(189 kB PDF)

Description

The PD450MA is an AC-coupled high-speed InGaAs photoreceiver. It features a high transimpedance gain, very low noise, and a -3 dB bandwidth of 450 MHz.

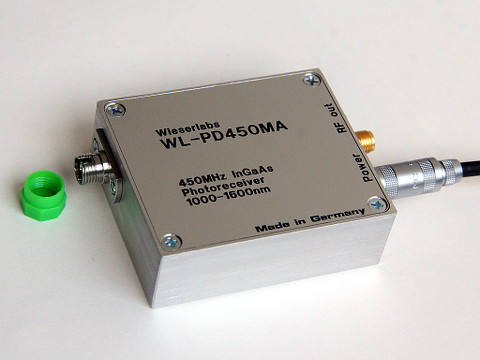

The PD450MA comes in a rugged aluminum case with an FC fiber receptable and a 50 ohm SMA output. It operates from a single 12-15 V DC supply. OEM versions without a case are available upon request.

Typical Applications:

  • Noise measurements
  • Pulse monitoring

Features:

  • -3 dB bandwidth: 300 kHz to 450 MHz
  • High transimpedance gain: 3000 V/W (1300 nm)
  • Wavelength range: 1000 nm to 1700 nm
  • 12-15 V single supply
  • Input: FC fiber receptable
  • Output: 50 ohm SMA plug
  • Damage threshold: 10 mW
  • Reasonable pricing (contact wieserlabs.com for a quote)

Similar Products:

  • WL-PD1GA: 1 GHz version
  • WL-BPD600MA: Dual-balanced (differential) version with similar bandwidth
